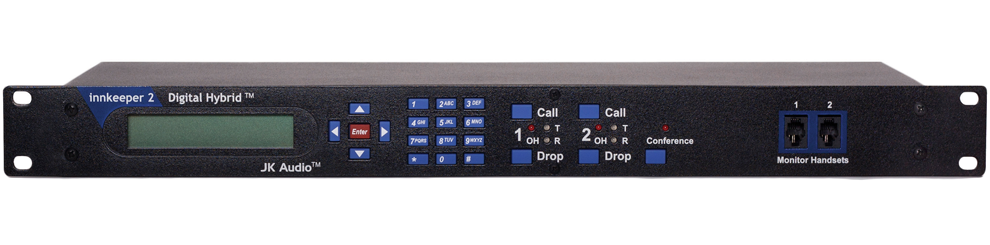

JK Audio Innkeeper 2

The Innkeeper 2 from JK Audio delivers two digital hybrids housed in a single rack-space chassis. The main function of a hybrid is to extract a caller's voice coming in on a phone line, while keeping it separate from the receiver's outgoing audio. Both these streams can then be controlled in various ways. A digital hybrid provides audio that is clearer and cleaner over the variations in quality found in analog hybrids.

The front panel hosts a menu driven keypad, a back-lit display and handset jacks that provide easy speed dialing and call setup. In order to achieve the required separation, an internal Digital Signal Processor (DSP) continuously monitors both the phone line and audio signals. The proprietary echo canceller algorithm can achieve excellent separation, typically exceeding 50dB without any additional setup. It should be noted that the unit only functions with "wet" phone lines and does not support "dry" (PBX) lines.

The keypad and display allow the user to store fifty phone numbers, sorted by name, in a phone list. The display can also be used to set features such as the number of rings before auto answer, master send channel selection, and test tone output. An auxiliary telephone jack is provided for each line that can be used to initiate or screen calls, and is disconnected when the "Call" button is depressed and reconnected when the "Drop" button is pressed.

FEATURES

16 bit DSP technology
Monitor Handset Jacks
Auto answer/disconnect
XLR line input, one per line
Send & Receive level LED
Memory / Speed Dial from phone list
Proprietary auto null algorithm, 50 dB null
Remote control and LED status indication
XLR master input sends audio to selected lines
Excellent separation of send and receive audio
