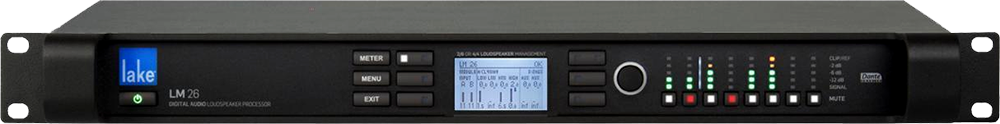

Lake LM 26

Lake LM 26

The LM 26 provides a two input/six output analog configuration that is ideally suited for multi-way loudspeaker crossover, delay and EQ functions. The LM 26 also provides 4 × 8 AES3 digital I/O and 4 × 8 Dante networked I/O, all with comprehensive signal routing to provide Dante break-in / break-out and failover functionality. Two LM 26 units may be stacked and linked to function seamlessly as a single 4 × 12 processor.

FEATURES

LM 26 applications include:
Crossover, delay and EQ for multi-way
loudspeaker systems
Line driver and system EQ for self-powered
loudspeaker systems
Dante break-in/break-out
Transmission system to and from FOH and stage L /stage R
2-in/6-out Lake® Processor
Raised Cosine Equalization™
Linear phase and classic crossovers
LimiterMax™ peak and RMS limiters
Maximum available delay of 2 seconds
Audio Inputs and Outputs
Analog with Iso-Float™ ground isolation
Digital AES3 4-in/8-out
4-in/8-out Dante networked I/O,
Gigabit Dual Redundant Dante™ by Audinate® audio networking
Front Panel
Daylight-readable display
Dedicated Module Input and Output LED Metering
Dedicated Module Input and Output mute buttons with LED
Dynamic buttons and rotary encoder for parameter adjustment
Performance
High quality A/D and D/A 24-bit conversion
96 kHz internal sampling frequency
32-bit floating point internal data path
Control
Full control via Lake Controller software application
Software configurable GPIO
