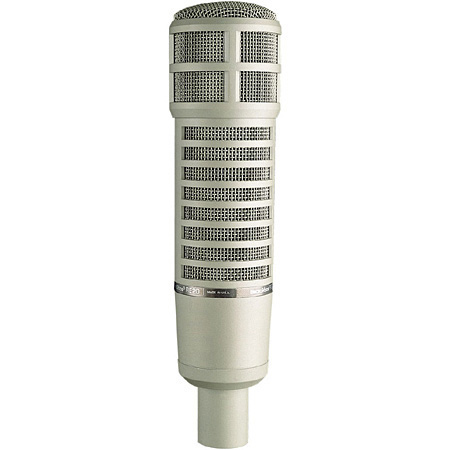

Electro-Voice RE20

Electro-Voice RE20

A true cardioid microphone, the RE20 offers greatest rejection at 180 degree off-axis - directly to the rear of the microphone. Pattern control is so consistent that the frequency response is nearly independent of angular location of the sound source, creating virtually no off-axis coloration, yet providing greatest possible rejection of unwanted sounds. An integral blast and wind filter covers each acoustic opening on the RE20. In recording sessions or on stage, singers can "close talk" the microphone, singing with their lips almost touching the grille screen with no worry of "P-pops" or excessive sibilance. Part of the filter also shock mounts the internal microphone element, reducing the transfer of vibrations from external sources.



FEATURES

  • Generating Element: Dynamic
  • Frequency Response: 45Hz-18kHz
  • Polar Pattern: Cardioid
  • Virtually free of proximity effect
  • Impedance: 150 ohms balanced
  • Sensitivity, Open Circuit
  • Polarity: Pin 2 will be positive referenced to Pin
