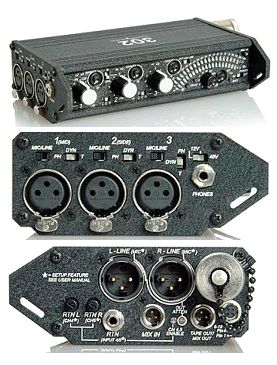

Sound Devices 302
The Sound Devices 302 is a professional, compact 3 channel audio mixer designed to meet the demands of professional film, ENG / EFP and broadcast applications. Its compact design, extensive feature set and superior audio quality justify the mixer's popularity among industry professionals. The 302 features 3 balanced XLR inputs that are capable of accepting mic or line-level signal (user switchable). The output stage features stereo (L/R) balanced XLR outputs that are also mic or line level switchable (factory set to line, refer to manual for mic level set up).
A user friendly control panel is accessible at the top of the unit for easy set up of additional functions or signal routing. Each channel provides individually switchable +48V, +12V and +12V-T phantom power for condenser microphones. Channels 1 and 2 are stereo linkable and a polarity (phase) reverse switch is provided on channel 2. This makes the 302 ideal for M-S stereo style capturing and monitoring. Input and output limiters are user switchable and eliminate noise and distortion caused by signal overload. Low-cut filter switches eliminate noise below 80Hz and the unit is powered by 3 AA batteries or external 5 - 18VDC power source.
3 Transformer Balanced Inputs - The compact mixer features 3 transformer balanced microphone or line level switchable inputs via XLR female 3-pin connectors.
Flexible Monitoring - The 302's headphone monitor out is capable of varying output impedance between 8 to 1000 ohms. The monitor source is capable of individual channel, mono, stereo, M-S to stereo monitoring and more.
Input and Output Limiting - Each input and stereo outputs provide input and output limiting that prevents signal overload, eliminating noise and distortion.
Polarity (Phase) Reverse Switch - Channels 1 & 2 are stereo linkable, channel 2 features a polarity (phase) reverse switch. This makes the 302 ideal for decoding M-S stereo captured audio signal.
Selectable Phantom Power - The unit is capable of powering condenser microphones requiring +48V, +12V and +12V-T phantom power. Phantom power is individually switched for every channel.
Low Cut Filter - A low-cut filter switch is available on every input, removing noise and rumble below 80Hz.
