Fiberlink 3621a

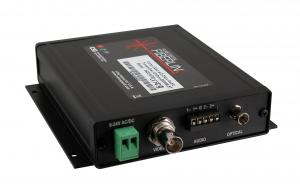

Fiberlink 3620A

The Fiberlink 3620A Series transmits composite video and two independent audio channels over one multimode or single mode fiber. It is ideal for Videoconferencing, Broadcast and Cable TV and Digital Signage applications.

FEATURES

10 MHz video bandwidth
Video channel is compatible with NTSC, PAL or SECAM video standards
Two audio channels that may be user-configured for balanced or unbalanced inputs and outputs
Switch selectable audio output gain boost of +0 dB or +6 dB
Indicator LEDs monitor power, video and audio signals
Transmits over one multimodeor single mode fiber
No adjustments; pure digital processing and transmission
Wide range power supply allows operation from both AC and DC sources
System consists of transmitter and receiver unit; card or box version.
