Ross FDR-6603

Ross FDR-6603

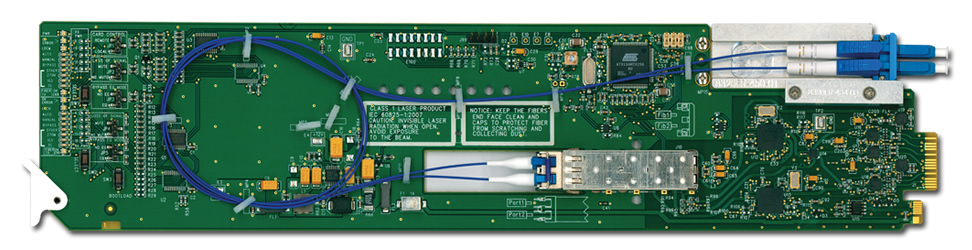

The FDR-6603 is a dual fiber optic receiver to serial digital SDI converter providing 2 channels of conversion on a single card supporting serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.

The FDR-6603 is fully hot-swappable with all active components on the front removable card. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame.

The -R2S high density split rear module can accommodate up to 2 FDR-6603 cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 40 independent channel solutions, providing ultra-high density conversion in a 2RU space.

FEATURES

  • Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
  • Supports single-mode fiber
  • Hot-swappable from front of frame with no external connect / reconnect required
  • Optical input range 1270nm to 1610nm
  • Optical input sensitivity -18dBm
  • Optical input connection: LC / UPC
  • Reclocked SDI outputs
