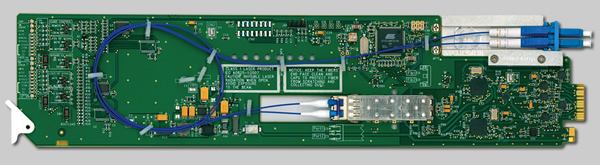

ROSS FDT-6604

ROSS FDT-6604

The FDT-6604 is a serial digital SDI to fiber optic transmitter converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked copies of the input providing excellent jitter and return loss specifications. The FDT-6604 is fully hot-swappable with all active components on the front removable card. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame. The -R2S high density split rear module can accommodate up to 2 FDT-6604 cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 40 independent channel solutions, providing ultra-high density conversion in a 2RU space.

FEATURES

Electrical to Optical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
Supports single-mode fiber
Hot-swappable from front of frame with no external connect / reconnect required
Optical output power: -7dBm / 0dBm (CWDM)
Optical wavelength: 1310nm or CWDM
Optical output connection: LC / UPC
Reclocked SDI outputs
Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
Power: 4.5 watts
