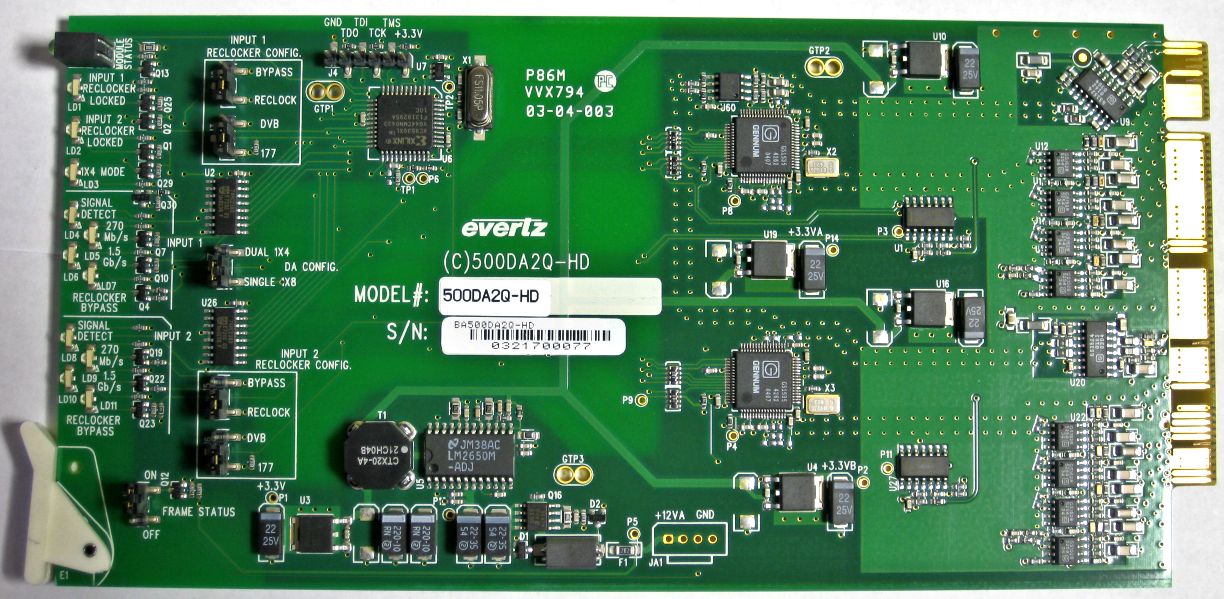

Product Image

Evertz 500DA2Q-HD

The Evertz 500DA2Q-HD Dual HD Reclocking Distribution Amplifier provides the highest density DA in the industry allowing up to 32 HD or SDI Distribution amplifiers in a 3RU rack space. It provides inexpensive distribution of your SMPTE ST 292-1 (1.5Gb/s), SMPTE ST 259 (143 to 360Mb/s), SMPTE ST 344 (540Mb/s), DVB-ASI or SMPTE ST 310 (19.4Mb/s) or any other SDI signal within the 143Mb/s to 1.5Gb/s range.

The 500DA2Q-HD features two auto-equalized inputs and can be configured either as a single DA with eight reclocked outputs or as two separate DAs with four outputs each. In the case of dual operation, each DA can be individually set via jumpers for either reclocking or non-reclocking.
