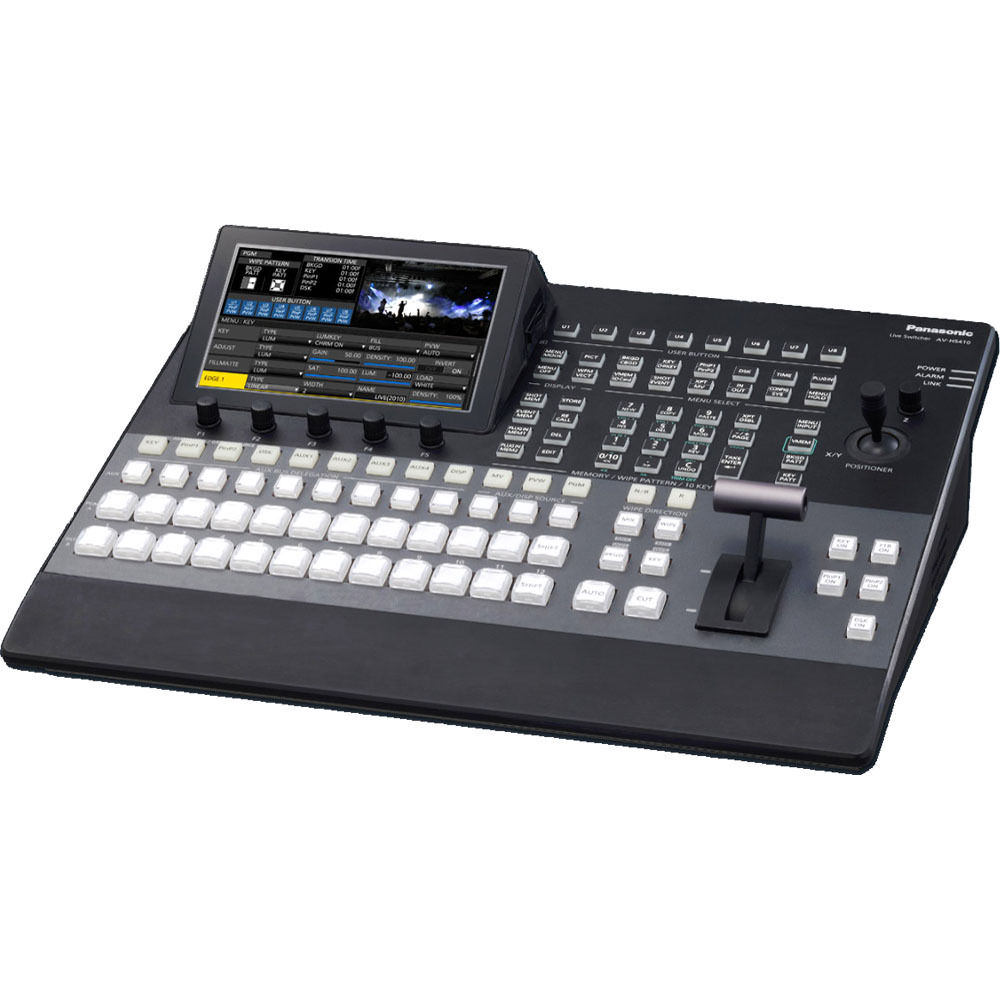

Panasonic AV-HS410

Panasonic AV-HS410

The AV-HS410 is compact and versatile with nine inputs standard (eight HD-SDI, one scaleable HD DVI-D), and is expandable using option boards to a maximum of 13 HD/SD switchable signal inputs. Five HD-SDI and one DVI-D outputs are also standard with option boards enabling expansion to a maximum of 10 outputs. Two expansion slots allow the simultaneous use of up to two AV-HS04M Series dual-channel input or output boards.Four Aux busses are provided to enable versatile production workflow, with mix transitions available on AUX1. Dual PinP (with transition memories), one DSK, and an upstream keyer with 3D flying key and Primatte® Chroma key capabilities are also provided. Numerous high-quality 3D and 2D effects are available for transitions for both background and key. All input channels feature a built-in switchable frame synchronizer, while upconverters are available for four channels and 16-axis color correction for the eight standard HD-SD/SDI inputs. The HS410’s system frequency is switchable among 60Hz, 50Hz, and 24Hz, enabling international operation and digital cinema style live switching.

Features

  • Nine Standard Inputs: Eight SDI and One DVI
  • Six Standard Outputs: Five SDI and One DVI
  • Built-in 178 mm ( 7 inches) multi-mode color LCD monitor displays versatile menus, image monitor,
  • waveform/vectorscope, etc.
  • Featuring High-quality Primatte® chroma keying and Versatile transitions, including DVE functions
  • Enhanced MultiViewer Display with up to 16 splits enables nine screen variations, clock, level meter and
  • 4:3 marker display.
