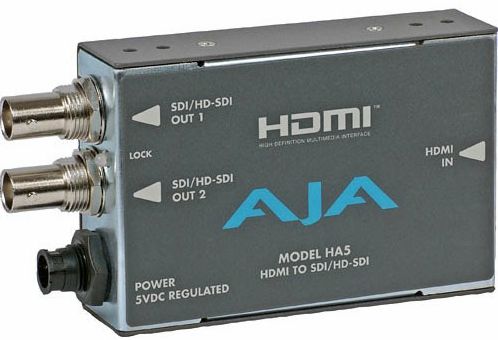

AJA HA5 HDMI to SD/HD-SDI Video and Audio Converter

The HA5 HDMI to SD/HD-SDI Video and Audio Converter from Aja converts (1) HDMI signal to SD- or HD-SDI output and is capable of embedding up to (8) channels of HDMI audio into the output signal for a single-cable audio-video connection. It features (2) SD/HD-SDI outputs.

This unit equalizes the input signal to support extended HDMI cable runs of up to 131'. PLL clock filtering is included to produce low jitter on output signals. LED lights provide a visual indicator of line status.

FEATURES

  • Low Jitter
  • Signal Equalization
  • Extended Transmission Distances
  • Full HDMI support including embedded audio
  • PLL clock filtering for low jitter SDI/HD-SDI outputs
  • Equalized HDMI input supports long HDMI cables up to 40m
  • Lock LED shows type of input source, SD (green) or HD (red)
