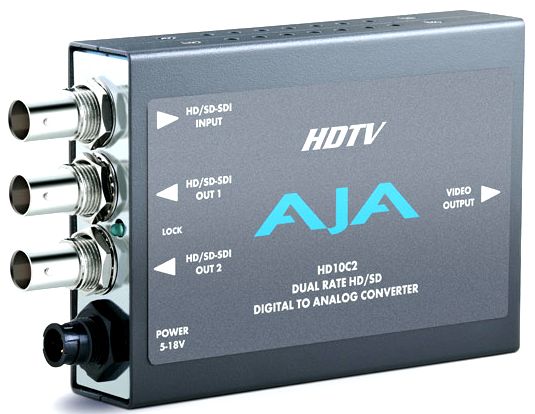

AJA HD10C2 Signal Converter
The HD10C2 is a signal converter that decodes a digital High Definition (BNC) Video signal to an analog High Definition (13W3) Video signal. This device comes with a breakout cable and features a miniature size. The featured upgrade is the ability to accept standard SDI and convert to YUV, RGB and composite.
FEATURES
- Multi-Standard - NTSC and PAL analog outputs are supported.
- Loop Through - This unit offers two looping HD-SDI outputs enabling other conversion applications and signal passage.
- Compact Size - Measuring less than six inches long, this unit will fit into small studio spaces or desktop applications very easily.
- Breakout Cable - A breakout cable utilizing the 13W3 connector breaks out to 5 BNC connectors enabling an RGBHV interface.
- Computer Monitor Display - This unit enables a High Definition video signal to be displayed on a multisync SVGA computer monitor.
- Dual Rate - For HD-SDI inputs, the HD10C2 outputs full bandwidth HD component or VGA-style RGBHV video. For SDI inputs, component or composite SD outputs are supported.
