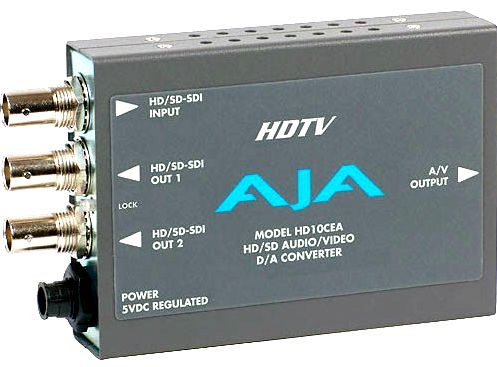

AJA HD10CEA SD/HD-SDI to Analog Audio/Video Converter

The HD10CEA SD/HD-SDI to Analog Audio/Video Converter from Aja converts (1) SD/HD-SDI video signal with embedded audio to analog video and 4-channel balanced or unbalanced audio signals. SD video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite, or YC (S-video). HD video outputs can be configured as YPbPr or RGB.

Analog audio outputs are selectable in groups from 1 through 4. All audio and video configurations are managed via external dipswitch selection. This device also includes (2) loop-through SD/HD-SDI outputs.

FEATURES

  • External Dipswitches
  • Loop -Through Outputs
  • Selectable Output - Audio and video output can be configured for use with multiple output formats.
  • Digital to Analog Audio/Video Conversion - This unit converts (1) SD/HD-SDI video signal with embedded audio to analog video and 4-channel balanced or unbalanced audio signals.
