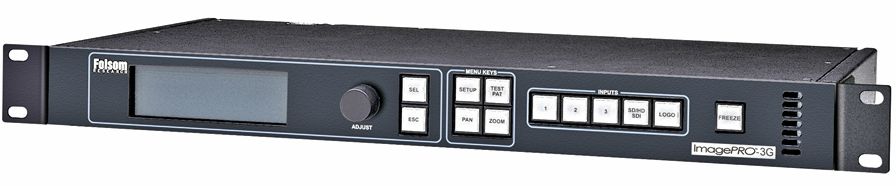

Barco ImagePRO-3G

The Barco ImagePRO-3G All-In-One Signal Processor is a four-input, six-output seamless switcher, a scaler that handles resolutions from 480-line NTSC up to 1080p HDTV and WUXGA (1920 x 1200), a scan converter that decodes PAL, SECAM & NTSC and encodes NTSC & PAL, an aspect ratio converter, a transcoder, and a de-interlacer. High-performance scaling is handled by Barco's proprietary Athena technology, a 10-bit image-processing technology that uses horizontal and vertical filtering techniques to provide crisp, clean images for both up- and down-conversion.

The 1080p HDTV format becomes possible thanks to the ImagePRO-3G's 3G/HD/SD-SDI input and output, which, of course, support SMPTE 424M for 3 Gb/s transfer. Besides this SDI input/output pair, there is also an array of connections for RGB (computer) video sources as well as component, composite, and S-Video; the three input channels for these all feature loop-through. True blackburst genlock input is provided so you can lock all output formats to the blackburst signal, timing together the output of multiple units and eliminating frame-rate conversion problems that would otherwise result in motion artifacts.
