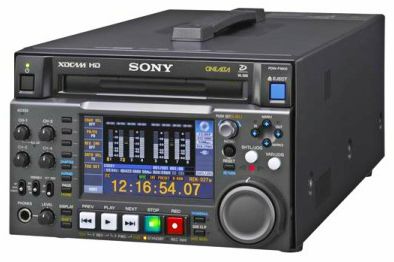

Sony PDW-F1600 Deck

The PDW-F1600 is a compact HD recorder which provides outstanding picture quality of MPEG HD422 as well as an eight-channel (HD-SDI), 24-bit audio recording capability. The foundation of the PDW-F1600 deck incorporates the features of the PDW-HD1500, and acts as more than just file-based recording deck. With its insert/assemble editing capability, it can be used as a recorder in a linear editing system - just like a conventional VTR. 23.98P and SD legacy formats are supported as standard. What's unique about this deck is its ability to operate on AC, DC or power. With its large 4.3-inch* LCD and built-in speaker, it performs as a versatile and high-quality recorder which is suitable for both in-house and field operations. It comes equipped with a multi-format up/down converter, which is highly useful when employing both HD- and SD-format materials at the same time.

*Measured diagonally.


Built-in audio speaker
High-speed file transfer
AC, DC or battery powered
Clip Continuous REC function
Easy and intuitive search operation
Compatible with the HDCA-702 MPEG TS Adaptor
Multi-format HD/SD Recording/Playback Capability
A large easy-to-see 4.3-inch type color LCD display
High-quality eight-channel (HD-SDI) 24-bit audio recording
Compact and lightweight: half-rack size and 6.5 kg (14 lb 5 oz)
Compatible with XDCAM Carts: the PDJ-C1080 and the PDJ-A640
Low power consumption: 65 W (typical) and 54W (in power save mode)
TBC Control, by front panel operation or remote control panel via RS-422
Handles both the dual-layer disc (PFD50DLA) and single-layer disc (PFD23A)
RS-422 9-pin remote control interface, which the deck to be used as a feeder for linear editing
