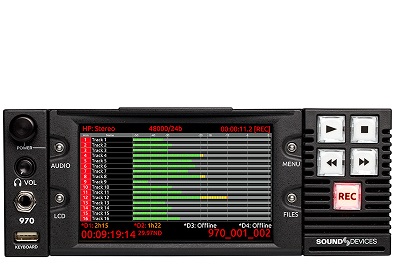

Sound Devices 970

The Sound Devices 970: 64-Track Dante And MADI Audio Recorder is a 2RU half-rack rackmountable multi-track audio recorder designed for mission critical applications that require high track counts with metadata support and network connectivity through the Dante and MADI protocols. This is useful for recording engineers using sound carts or for installed applications such as at broadcast news network. For I/O the recorder features eight analog input channels via D-SUB connector, eight channels of professional AES digital inputs via D-SUB, MADI IN and OUT, and DANTE IN and OUT. It also features a headphone input with volume control on the front panel. The unit can record up to 64 mono or polyphonic .WAV tracks at 24-bit 48 kHz resolution from any of its 144 available inputs. It can also record a maximum of 32 channels at a maximum resolution of 24-bit at 96 kHz and can convert between any of the available recording formats internally.



  • Record Up to 64 Mono or Poly WAV to SSD
  • 64x Channel Dante Audio I/O
  • 64x Channel MADI Optical and Coaxial I/O
  • 8x Line-Level Analog Inputs and Outputs
  • 8x Channel AES3 Digital Audio I/O
  • PowerSafe Circuitry Protects Files
  • Time Code Master Clock
  • Simultaneous and Sequential Recording
  • File Transfer Over SMB Ethernet
  • File Conversion Between Formats
