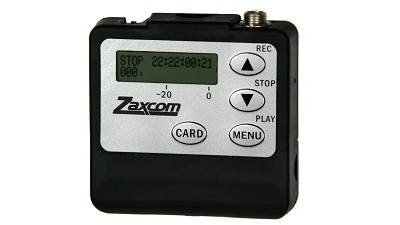

Zaxcom- ZFR200

The Zaxcom ZFR200 (Zaxcom Flash Recorder) is the same size as Zaxcom TRXLT2 wireless transmitter and accepts standard lavaliere microphones. A stereo ZFR can accept two lavaliere microphones, or two unbalanced microphone inputs.The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of being out of range or having to deal with RF issues. On power up the ZFR can jam time code via the ZaxNet 2.4Ghz signal and then will then start transmitting QC audio with time code within 10 seconds. ZaxNet transmission from the ZFR allows audio to be monitored for quality control. The ZaxNet signal is used for quality control and can be used as a timecode master to wirelessly jam other ZFR recorders or TRX transmitters. The ZFR can optionally re-jam time code every few minutes to maintain sub-frame accurate time code lock. At the end of your shoot you gather each SD memory card from the ZFR and deliver them to post.

FEATURES

  • Recorder Audio - Dynamic Range: 104 dB
  • Distortion: <0.01%
  • Frequency Response: 20 Hz to 16 kHz
  • Highpass Filter: Off or 30 to 220 Hz, step: 10 (6 dB per octave)
  • Mic Power: 3.3 VDC @ 10mA max
  • Mic Connector: 3-pin micro LEMO (mic side = FGB.00.303.CLAD22)
  • Input Range: -60 to -24 dBu
  • Impedance: 4.7 k ohms
  • ADC Bit-depth: 24 bits
  • ADC Sampling-rate 48 kHz
