Aja 12 GDA

Aja 12 GDA

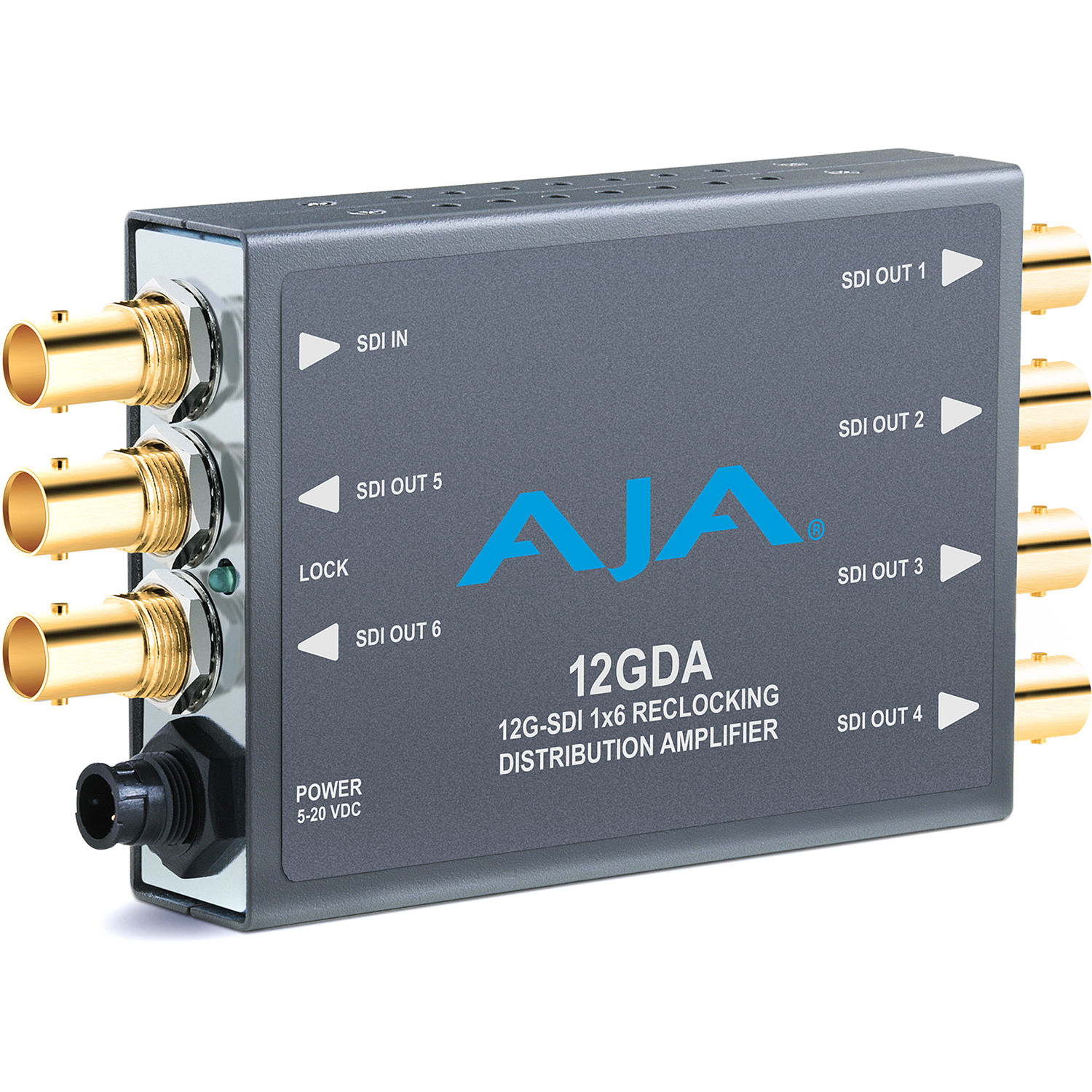

Aja 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

FEATURES

  • Compact 12G-SDI distribution
  • Six separately buffered outputs
  • 12G cable equalization (1694 coax)
  • 12 Gbps, 70m
  • 6 Gbps, 120m
  • 3 Gbps, 190m
  • 1.5 Gbps, 195m
  • 270 Mbps, 405m
  • 12G/6G/3G/HD/SD-SDI input, auto sensing
