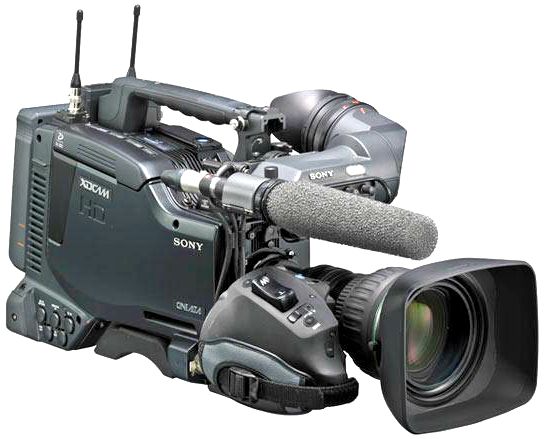

Sony PDW-F800

The PDW-F800 camcorder is the newest member of the XDCAM family. It offers multi-format recording flexibility as standard - including SD recording and a frame rate of 23.98P in 1080 modes. It is equipped with three 2/3-inch type CCDs and a “Power HAD FX” progressive CCD with 1920 x 1080 effective pixels. Stunning-quality HD images can be captured by this high-resolution CCD and advanced digital signal. On top of the exceptional technology, the PDW-F800 offers very high quality HD recording at a data rate of up to 50Mbps using the MPEG-2 4:2:2P@HL compression. It also provides multi-format recording flexibility including 1080i, 720P and SD, which comes with HD/SD conversion and cross conversion between 1080i and 720P. With features such as Slow & Quick Motion (over-crank and under-crank recording) make the PDW-F800 ideal for cinema and TV drama productions, as well as ENG applications.

Focus Assist
i.LINK interface
HD422 50Mbps
Image Inverter
Ethernet interface
Slow & Quick motion
DL & SL Disc Recording
Three 2/3-inch type CCDs
Compact and lightweight at 9 lb 4 oz
1080i / 720P support for HD 422 and 420
High-quality four-channel audio recording
Pool-feed input (HD/SD-SDI and composite) option
Dual HD/SD-SDI outputs and composite/HD-Y output
24P format for HD422/420(1080i) and SD formats (DVCAM, MPEG IMX) are supported as standard
