Marshall ElectronicsCV502-MB

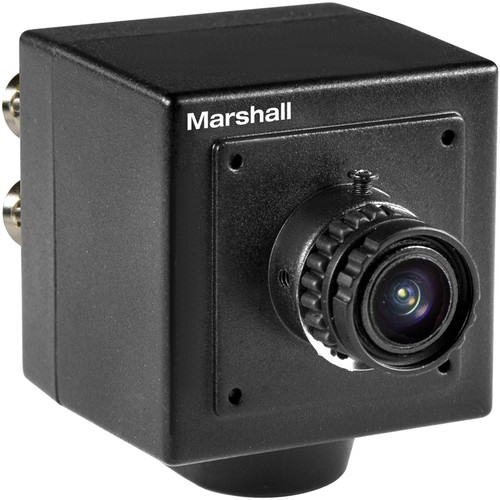

Suitable for use in  various broadcast situations as well as security applications the Marshall CV502-MB 2.5MP HD/3G-SDI Compact Broadcast Compatible Camera with Interchangeable 3.7mm Lens provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and includes an interchangeable 3.7mm lens in an M12 mount. The camera captures HD video at 1080p 29.97/59.94, 1080i 59.94, and 720p 59.94 fps, allowing you to easily integrate the camera into an infrastructure that supports Broadcast frame rates. The camera incorporates one 3G/HD-SDI output as well as a CVBs (composite) video output.


  • 1/3" 2.5MP CMOS Sensor
  • 3.7mm Lens in M12 Mount
  • 29.97/59.94 fps
  • 3G/HD-SDI & Composite Output
  • Min. Illumination of 0.5 Lux in Color
  • Digital Wide Dynamic Range, 2D & 3D NR
  • Privacy Masking, Motion Detection, AWB
  • Built-In Joystick & OSD Menu System
