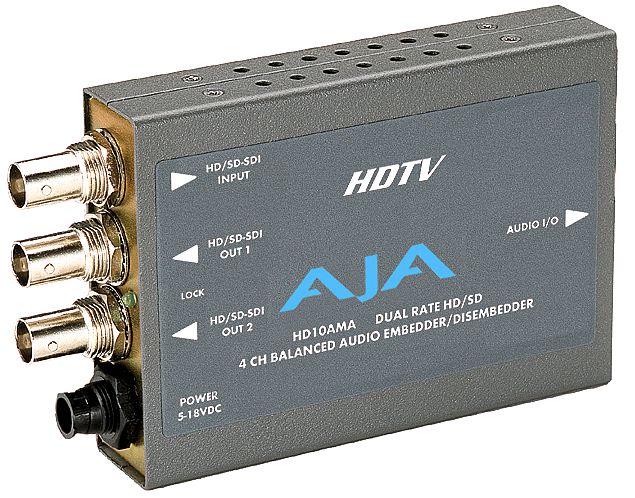

Product Image


The HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.


  • 5-18VDC Power
  • Dipswitch configuration
  • Supplied XLR breakout cable
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • 4-Channel Balanced Analog Audio I/O
  • Dual rate HD-SDI/SDI Embedder/Disembedder
