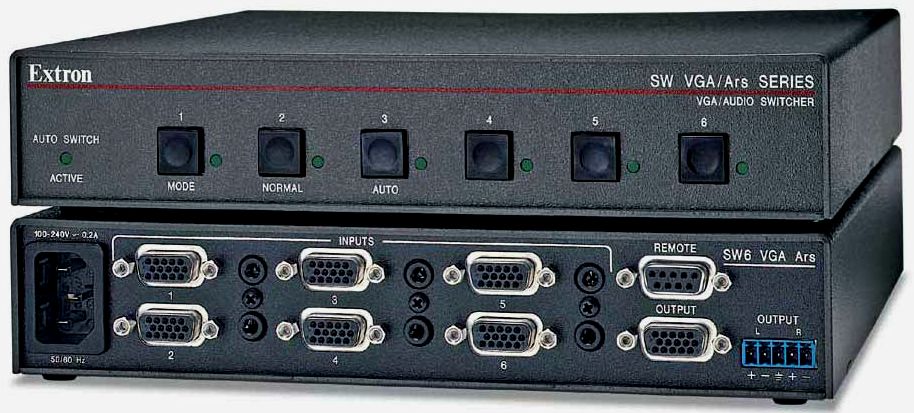

Product Image

Extron SW6 VGA DA

The Extron SW6 VGA Audio is a six input, one output active switcher for VGA and stereo audio signals. Using 15-pin HD connectors, the SW6 VGA Audio allows multiple computer-video inputs to be switched to one compatible display. The SW6 VGA Audio also provides captive screw terminals for connecting to balanced and unbalanced stereo audio sources.

The SW6 VGA Audio may be controlled via the front panel buttons. A rear panel serial port provides RS-232 control and contact closure control via a 9-pin connector. The switcher is also autoswitchable; front panel buttons allow the user to select between auto-input switching and normal switching. Auto-input switching allows any input of the switcher to be selected automatically when the switcher detects a sync signal. For example, a number of wall plate receptacles can be installed around a room, each routed to one input of a switcher. As soon as an active VGA source is connected to the wall plate, the switcher automatically selects that input. The SW6 VGA Audio fits into the included 19-inch (48.3 cm), 1U rack mount shelf.


  • RS-232 control
  • Audio input gain and attenuation
  • Contact closure remote control
  • 1U, full rack width metal enclosure
  • 350 MHz (-3 dB) RGB video bandwidth
  • Switches both balanced and unbalanced audio signals
