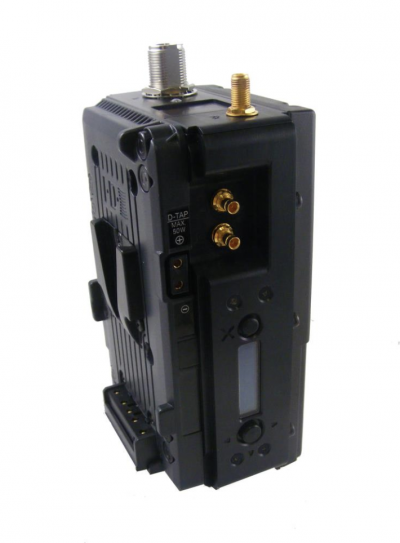

DTC SOLO7 Dual Band Transmitter
A compact and feature-rich COFDM digital video transmitter, specifically designed for high quality wireless link applications. With proven Domo COFDM and H.264 encoder technology at its core enabling High Definition images the small size and ultra low power consumption give maximum operational performance. Designed to offer maximum flexibility, the unit has a variety of video input options including composite, 3G-SDI and HDMI plus true balanced audio. The transmitter has an integrated control panel with sunlight-readable OLED display covering all major functions and has 16 user-defined presets. A wide range of swappable frequency bands are available from 200MHz to 8.9GHz. Integrated UHF band Camera Control is available as an option.
- Ultra-low latency High Profile H.264 SD and HD encoding
- Video formats up to 1080p60 and optional 4:2:2 Chroma sampling
- Industry standard DVB-T modulation for interoperability with existing systems
- Domo Broadcast UMVL modulation for enhanced high frequency / high speed performance
