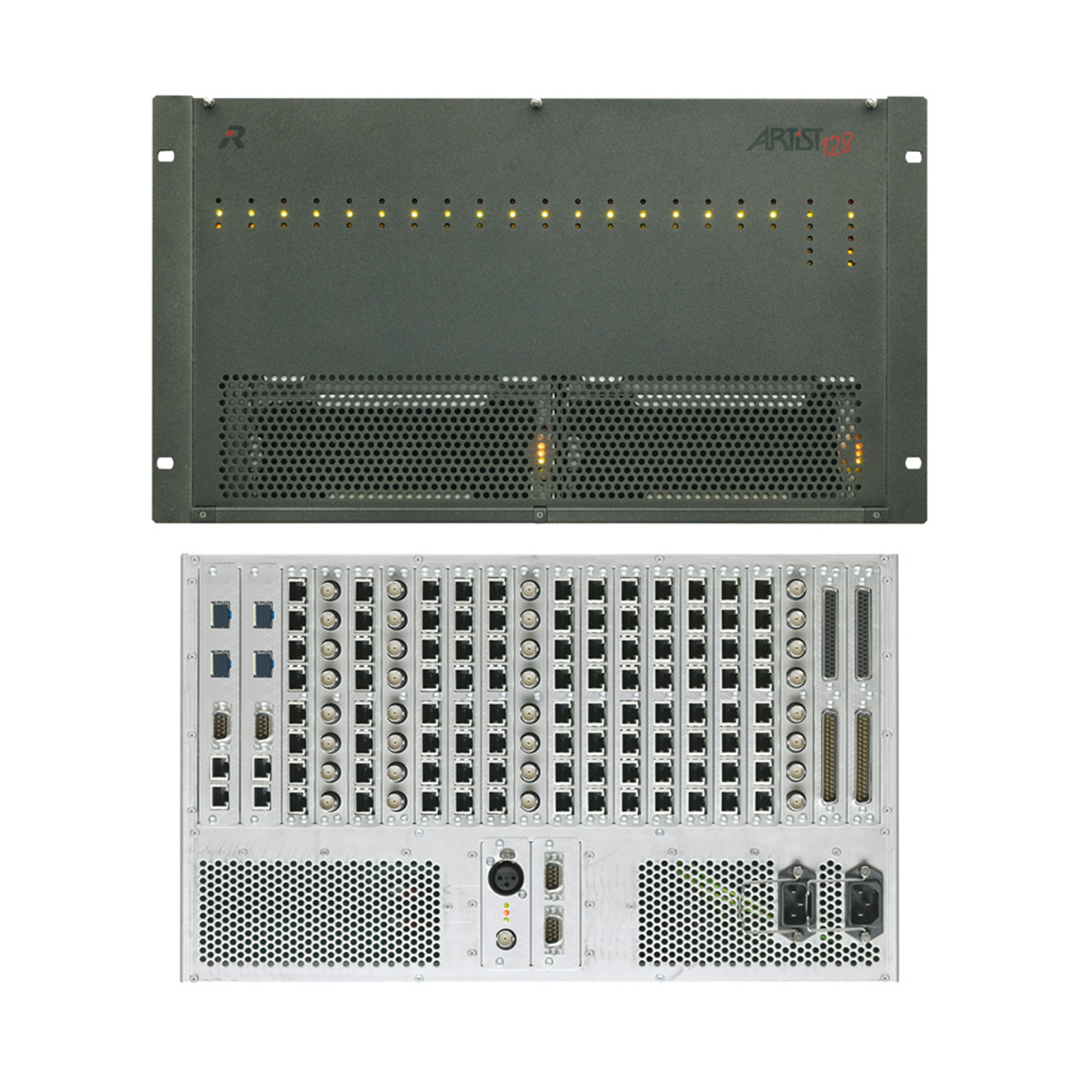

Riedel Artist 128

Artist is a highly modular concept feeding modern intercom demands. It is not only the frames themselves being modular and thus expandable, it’s also the system’s architecture itself.

Up to 128 ports can be accommodated in a single frame and up to 128 frames can be connected to a redundant dual fibre optic ring resulting in a maximum matrix size of 1,024 x 1,024 intercom ports. The system still “feels” as one: it is completely non-blocking and has no limitations in the number of cross-points within or between the different nodes of the system.

Simply select the desired frame size and add the client cards needed. As your demands grow, you can easily expand your system by adding new client cards or additional frames to your system. And if you need to exchange a smaller frame for a bigger one you don’t need to buy new controller & client cards. Since all Artist frames feature the same type of cards, you can just use the ones you’ve been using before. This scalability and expandability makes Artist a secure long-term investment.


  • Maximum matrix size: 1024 x 1024
  • Hot swap of all modules
  • Redundant power supplies
  • Redundant node controller
  • Max. ports per frame: 128
  • Max. number of controller / client / GPI cards per frame: 2 / 16 / 2
  • 19" / 6 RU
