L-Acoustics KARA II Line Array system
Part of the K Series, Kara II is a modular line source system that can be deployed standalone or with its companion subwoofer SB18. Assembled as a variable curvature line source with class-leading SPL per weight and footprint, Kara II is ideal for applications that require clarity and long throw capability such as performing arts, congregations, large corporate, or special events.
Based on the Kara design, Kara II adds flexibility with PanflexTM. A single Kara II enclosure offers four horizontal directivity patterns: 70° or 110° symmetrical and 90° asymmetrical on either side. With a tighter control of the directivity, the 70° setting brings an additional 2 dB compared to the 110° setting increasing throw capability. With Panflex and inter-element angles ranging from 0° to 10°, a Kara II line source coverage can be precisely tailored to any audience geometry.
On its own Kara II can be used as a main system for vocal reinforcement and music material with light LF requirements or as a complement to large sound systems in fill and delay applications. Associated with its companion subwoofer SB18, Kara II modular system can accommodate any program material requiring bandwidth, contour and output.
FEATURES
- Best in its class Dual 8” line array system, designed for mid-sized applications like large ballrooms or mid-sized theaters. Premium product in it’s category.
- Passive, bi-amped system – requires LA12x amps (LA-RAKII AVB for amp rack)
- Can be flown or ground stacked – either way requires MBUMB full size bumper or MINIBU bumper (up to 6 KARA for MINIBU)

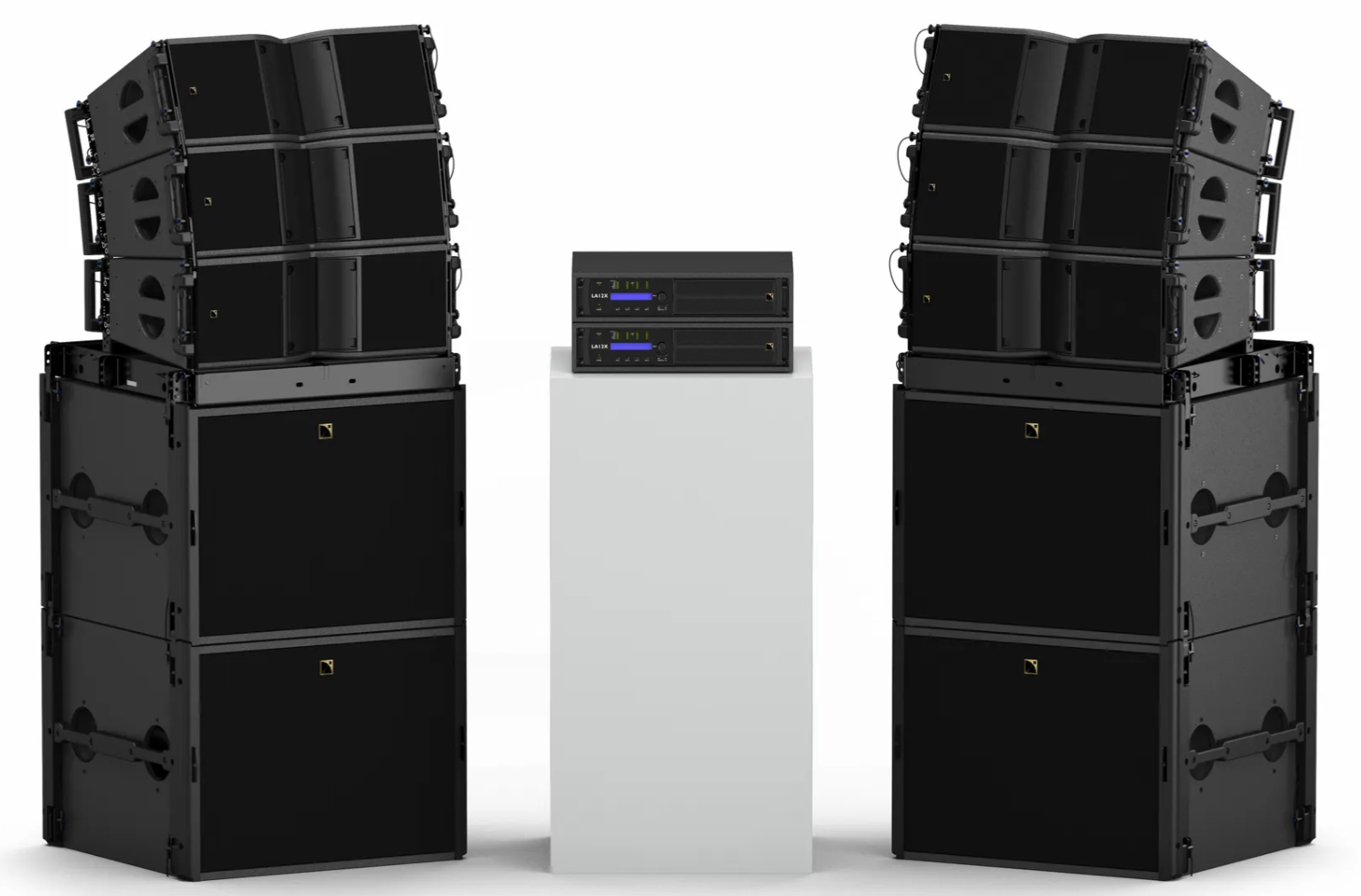

- Pairs with SB18 subs and LA-RAK II AVB amp rack (12 channel rack – 3 tops for every 2 amp channels, OR 1 sub per channel)
- KARA tops are shipped in cases of 3. Subs are shipped solo with a dolly and slipcover.
- Type Speaker: Passive
- Driver HF: 1 × 3'' neodymium diaphragm compression driver
- Driver LF: 2 × 8’’ neodymium driver
- Frequency range: 55 Hz – 20 kHz
- Beam angle:30° x 70°/110° symmetric of 90° asymmetric
- Maximum SPL: 142 dB
- Impedance: 8 Ω
- Connectors: 1 x speakON NL4 (IN), 1 x speakON NL4 (LINK)
