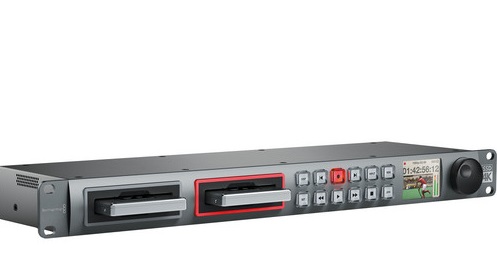

Blackmagic Design HyperDeck Studio Pro 2

The Blackmagic Design HyperDeck Studio Pro 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in .mov format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other.

The Studio Pro features one 6G-SDI input & output for 4K signals, and three SD/HD/3G-SDI inputs & outputs. It supports Ultra HD 4K via HDMI. It also features analog component in & out, with analog audio in & out, and timecode in & out. The Studio Pro 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information. The unit also incorporates a Thunderbolt port, for connecting the HyperDeck Studio Pro 2 to a computer.

FEATURES

  • 1RU File-Based Video Recorder
  • Records Uncompressed 10-bit 4:2:2
  • Records Compressed in ProRes / DNxHD
  • Records on Two 2.5" SSDs
  • 1 x 6G-SDI & 3 x 3G-SDI Inputs / Outputs
  • HDMI 4K In & Out, Analog Component
