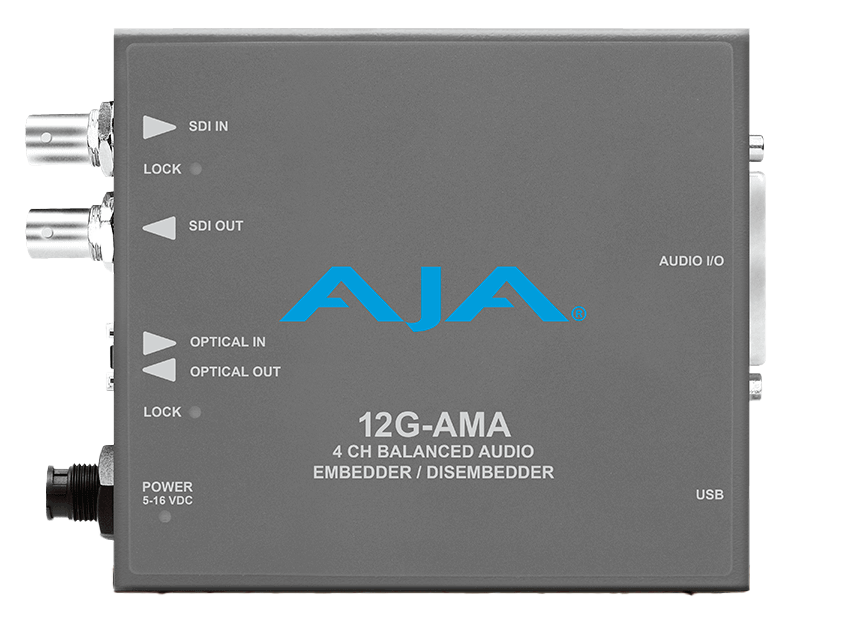

AJA 12G-AMA 12G 4 Channel Analog Audio Embedder/Disembedder
The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and
output up to 4K/UltraHD.
Audio disembedding is always functional, providing four analog outputs. Audio
embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input
analog audio from the breakout cable.
Analog audio levels are selectable. The 12G-AMA automatically detects
and configures the input video standard.
FEATURES
- 12G-SDI Input and Output up to 4K/UltraHD.
- 4-channel balanced audio Embedder/Disembedder.
- Audio Disembedding is always functional with four Analog outputs.
- Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio.
- Selectable Analog audio levels.
- Automatically detects and configures the input video standard.
- 1.5G-SDI Internal Signal Generator.
- Small form factor allows for a wide variety of installation locations.
- XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors.
- Configure via USB port and supplied AJA Mini-Config software.
- DIP Switch configuration.
