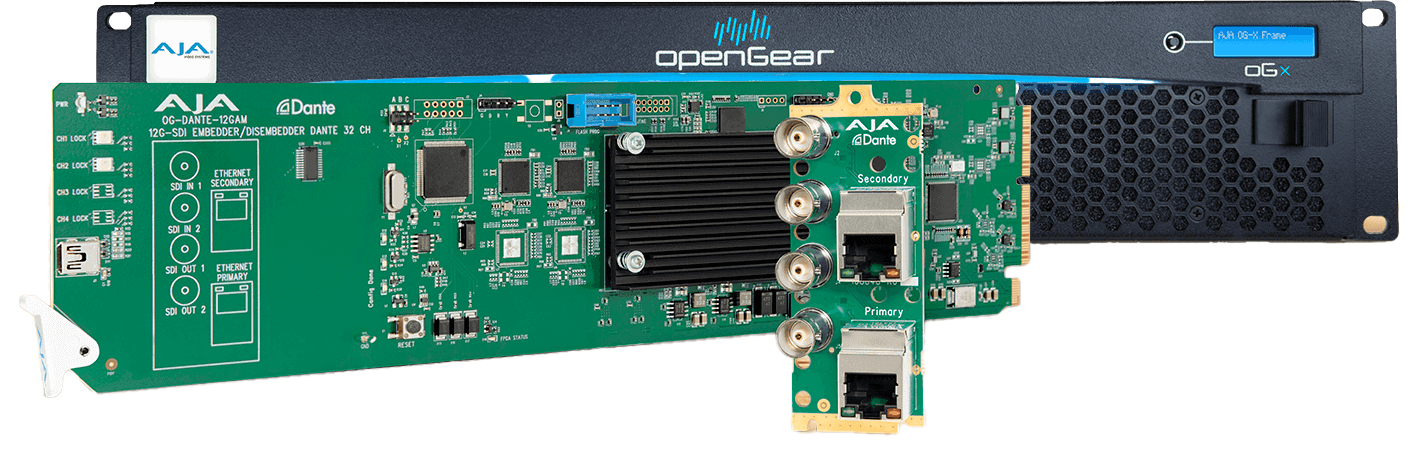

AJA 12G-SDI Dante Embed/Disembed OG Card
The AJA OG-DANTE-12GAM is an openGear-compatible Dante/AES67/2110-30/RAVENNA AoIP audio embedder and
disembedder. It features dual 12G-SDI inputs and outputs, enabling simultaneous embedding and disembedding of up
to 32 audio channels each—offering a total of 64 channels of audio I/O. This device acts as a seamless link
between SDI-based systems and Audio over IP (AoIP) networks.
Dante and other IP audio protocols enable
low-latency digital audio transmission across local or wide-area networks using standard network hardware.
Compared to analog, AES, or MADI setups, these technologies deliver greater scalability, simplified cabling, and
easier installation for audio systems.
FEATURES
- Support for 12G/6G/3G-SDI audio embedding to and disembedding
- Dual, and independent 12G-SDI input and output ports
- 1x Primary and 1x Secondary GigE ports for Dante network redundancy
- 64-channels of simultaneous SDI/Dante audio bridging per card
- 2x Internal Signal Generators
- Ross DashBoard software support
- Compatible with a range of Dante software
- High density and compact form factor
- Supported within OG-X-FR and OG-3-FR openGear frames
- Hot swap capable
