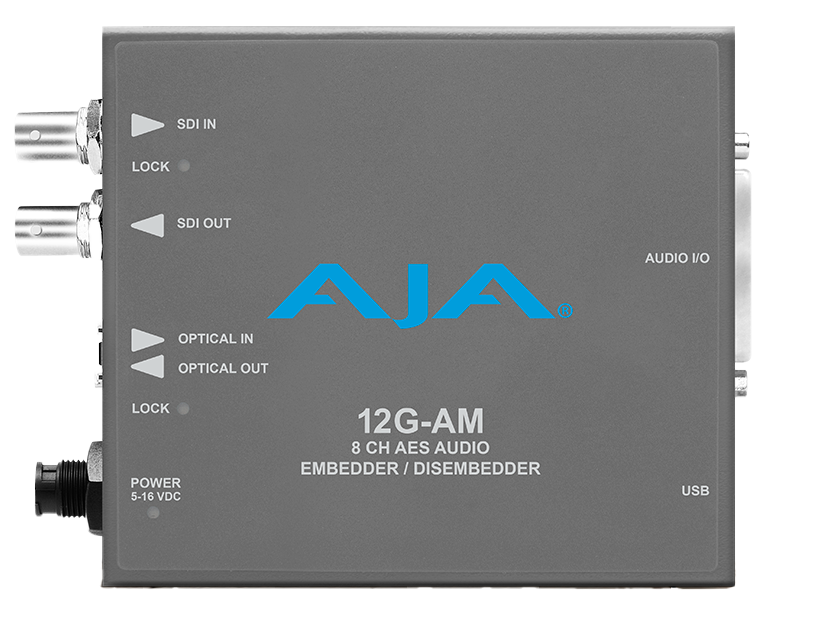

AJA 12G-AM 12G 8 Channel AES Embedder/Disembedder
The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and
output up to 4K/UltraHD.
AES Audio disembedding is always functional, providing four AES outputs. Audio
embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES
audio from the breakout cable.
The 12G-AM automatically detects and configures the input video standard.
FEATURES
- 12G-SDI 8-Channel AES Embedder/Disembedder.
- 12G-SDI Input and Output up to 4K/UltraHD.
- AES audio Disembedding is always functional with four AES outputs.
- AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio.
- Selectable AES audio levels.
- Automatically detects and configures the input video standard.
- 1.5G-SDI Internal Signal Generator.
- Small form factor allows for a wide variety of installation locations.
- XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors.
- DIP Switch configuration.
- Can Embed / De’embed 8 Ch. of AES (XLR).
- This device is AES only. Does not support Analog audio.
